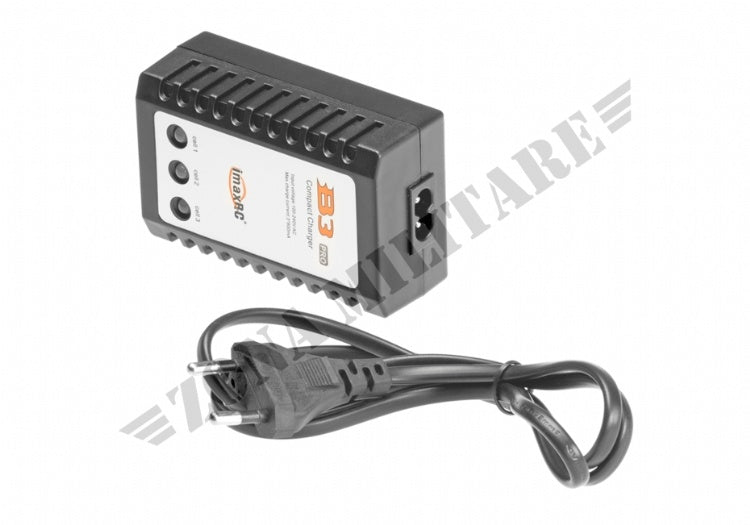

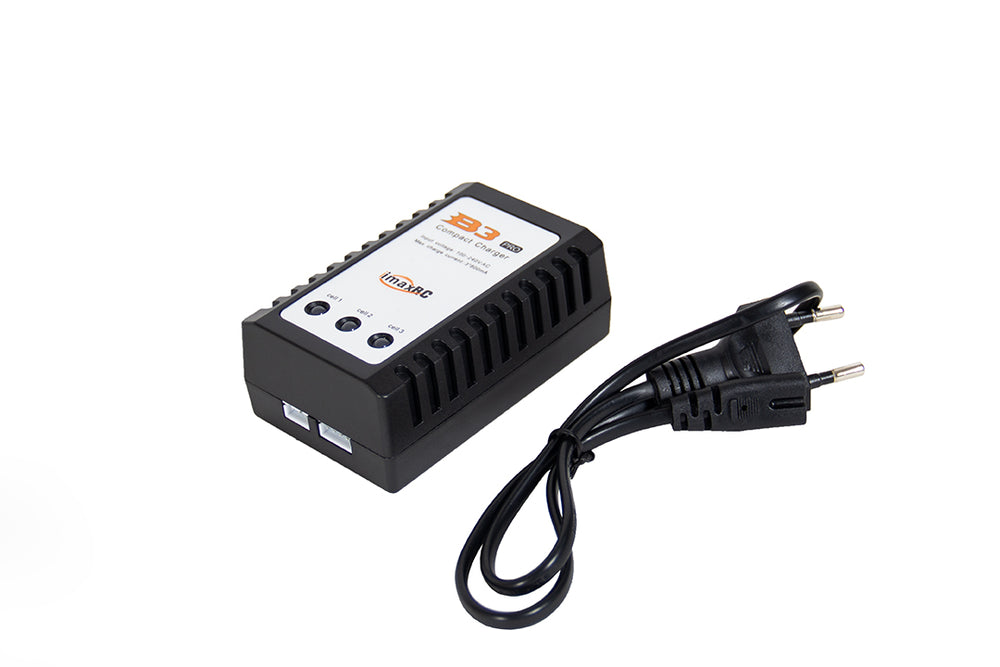

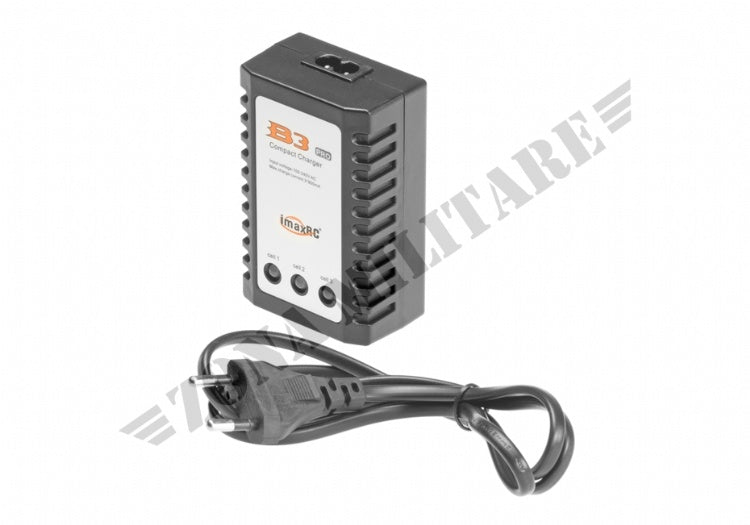

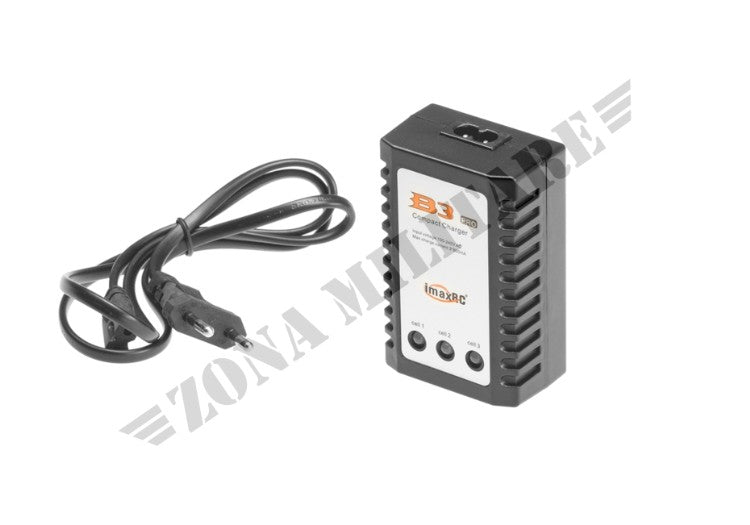

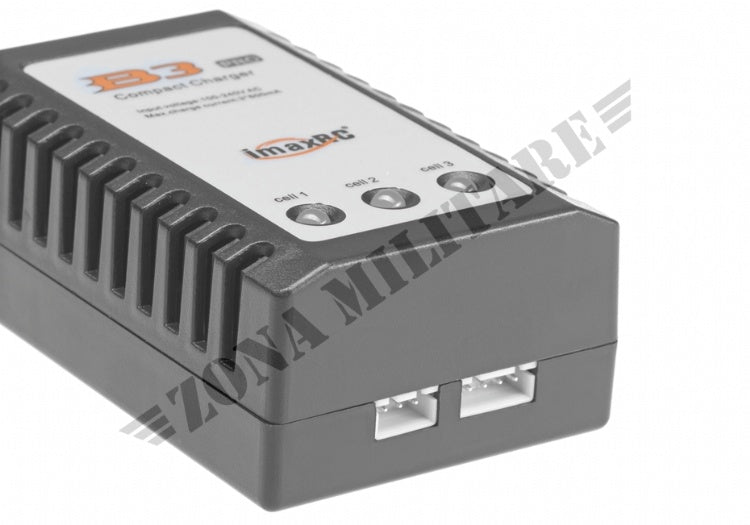

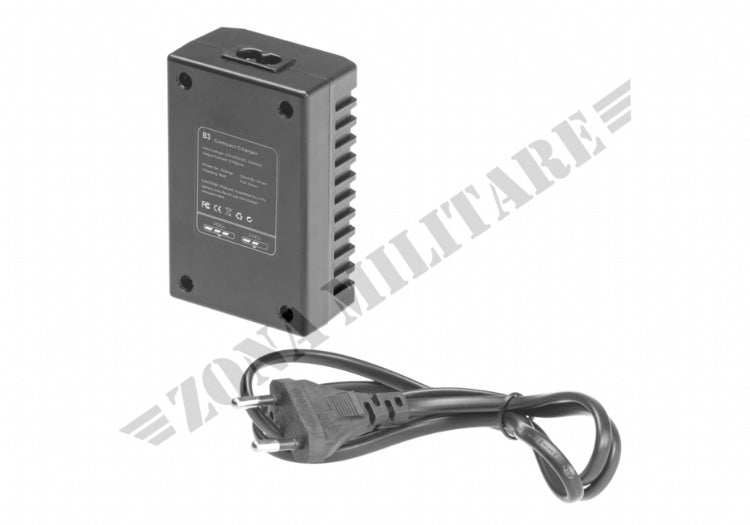

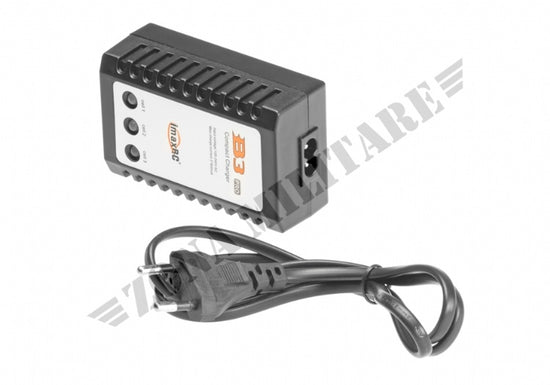

LiPo Battery Balance Charger Imax RC B3 2-3s cells 7.4V,11.1V RC models charger

SPECIFICATIO:

Input voltage: AC 110V-240V

Balance charge current: 850mA

Display: Green & Red LED

Case: Plastic

Dimension: 90mm*55mm*35mm

Weight: 110g-180g (according to the package)

Features:

A internal 100-240V AC switch power is built in, and the high precision balance circuit can supply larger current up to 850mA per cell. Double colour LED can display the process of charging (RED: charging; GREEN: full). This charger is compact and light, especially there is separated corresponding balance port for each battery pack.

How to operate: 1. Please firstly connect the B3 Pro charger to power, while the three power LEDs will turn from red to green, which indicating that the charger works in good order.

2. (Set 3s battery pack for example) Secondly, please connect the battery pack to 3s balance port , while the three power LEDs will all turn into red and charging begins. Please note once the charging of one cell is done, the corresponding power LED for it will turn green.

3. When the three power LEDs all turn green, the charging for 3S battery pack is Finished.

Includes - IMAXRC B3 Compact Charger * 1

- Power Cord * 1

- Instruction manual * 1
