COMPACT. LIGHTWEIGHT. FULL METAL. THE ULTIMATE CQB COMBO.

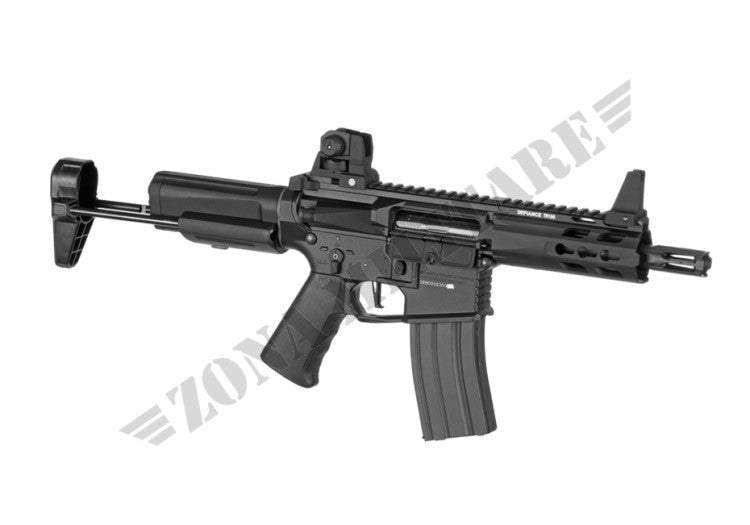

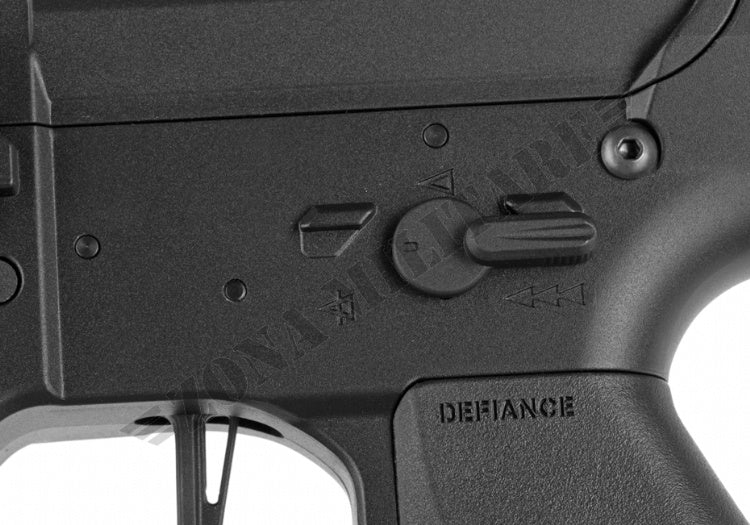

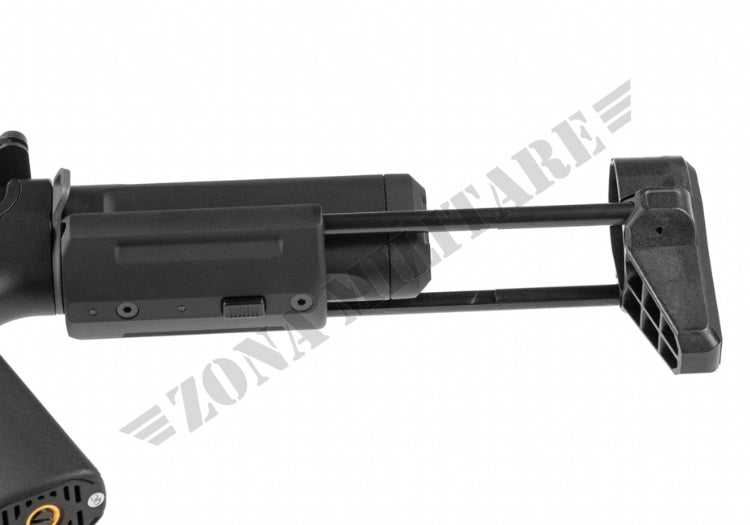

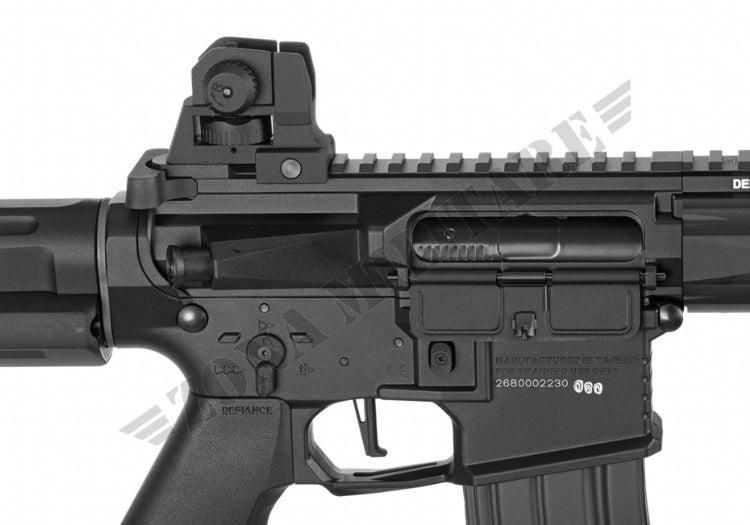

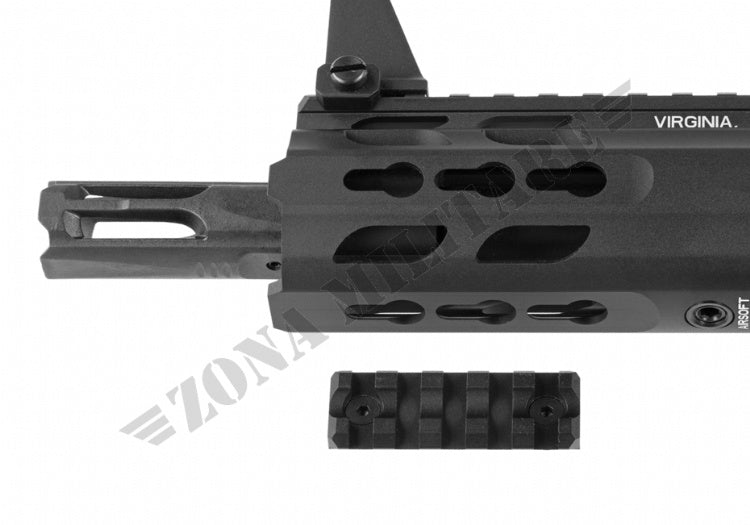

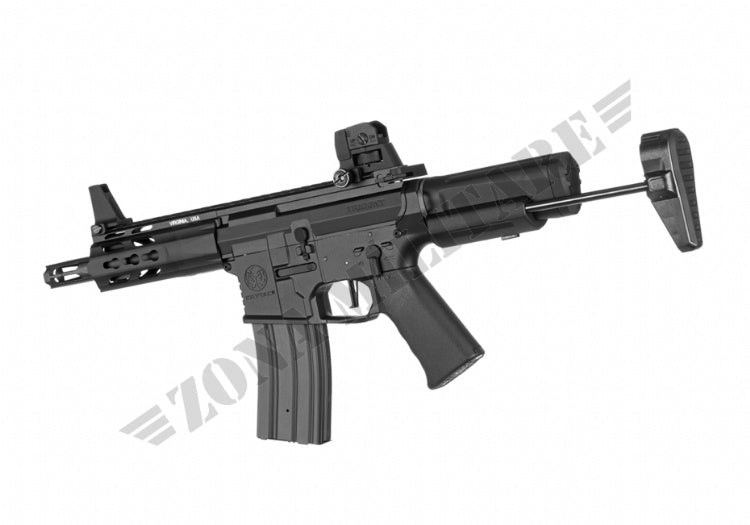

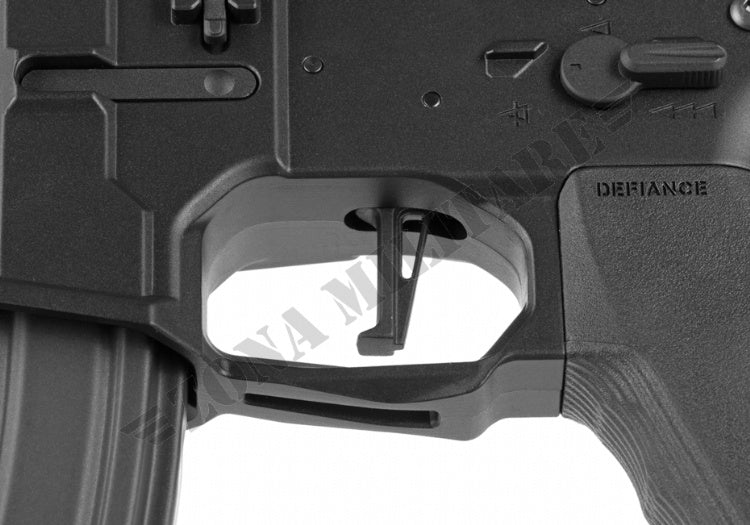

The Trident MK2 PDW is the most compact rifle in the series and is designed for maximum maneuverability and control, in close quarters combat. The full metal AEG features a short 5.5” barrel and a 5” free floating, DEFIANCE TR105, keymod hand guard. The DEFIANCE hand guard features three prongs at the front that can be used to brace the gun against barricades, eliminating the need for an aftermarket barricade stop rail accessory. The MK2 aluminum receivers feature a modern design style with a stamped KRYTAC logo and include an integrated trigger guard. An originally designed DEFIANCE pistol grip enhances the rifle’s comfort. Additional features include an ambidextrous fire selector and a locking bolt that provides easy access to the KRYTAC rotary hop-up system. The KRYTAC rotary hop-up has 15 adjustment settings and a numbered adjustment wheel for a quick reference point to determine how much hop is needed. The futuristic KRYTAC sliding stock is adjustable to two positions and is supported by the enhanced KRYTAC buffer tube to allow space for a wider range of batteries. The PDW utilizes AR/M4 style magazines and sports similar controls for those familiar with the platform. In addition to looking futuristic and functional, the PDW is also a fantastic performer thanks to its gearbox.

Internally, the Trident MK2 PDW features a reinforced 8mm ball bearing gearbox with integrated MOSFET to regulate electronic signals and to protect the trigger contacts. The corners of the gearbox that surround the cylinder feature a smooth radius, as opposed to a 90° angle, to prevent fracture. Also, the gearbox shell features a small window on the left side where lubrication can be applied directly to the gears or piston, this window is also convenient for inspecting the angle of engagement with the gearbox fully assembled. Additional gearbox features include a modular spring guide system that will allow the spring to be changed without completely disassembling the gearbox. The KRYTAC piston is made of a durable, lightweight, polymer and features 4 metal teeth, with the 2nd to last tooth absent. The Cylinder head is padded with an enlarged rubber bumper to optimize the angle of engagement and to absorb energy form the impact of the piston assembly. The material for the gears have been especially formulated to be very strong, Rockwell test figures on the KRYTAC gears are much higher than industry norms. Turning all of the drive train components is the KRYTAC high torque motor, capable of 30,000 revolutions per minute unloaded.

The Trident MK2 PDW provides a fresh look to a familiar AR design with features design to enhance performance and maximize user friendliness.

FEATURES TRIDENT PDW MK2

Threaded Barrel: Yes - 14x1 CCW

Handguard / Rail Length 22.4 cm / 5"

Receiver Material: Aluminum Alloy

Stock Adjustability: 2 Positions

Stock Type: Combat Carbine Stock

ATTRIBUTES TRIDENT PDW MK2

Caliber: 6mm

Magazine Capacity: 350 rd

Projectile: BB

Overall Length: 527 mm (20.75") - 610 mm (24")

Overall Height: 180 mm (7")

Weight: 2.27kg / 5.0 lbs

Outer Barrel Length: 5.5"

Inner Barrel Length: 155 mm

Inner Barrel Diameter: 6.05 mm

PERFORMANCE TRIDENT PDW MK2

Rate of Fire /W 11.1V LIPO 20+ RPS

Min FPS /w 0.20g BB 325

Max FPS /w 0.20g BB 335

Min MPS /w 0.20g BB 99

Max MPS /w 0.20g BB 102

Deviation Between Shots ±5 FPS / 1.52 MPS

Energy Output with 0.20g BB 1 Joules

SPECIAL FEATURES TRIDENT PDW MK2

MK2 Aluminum Alloy Receivers

8mm Ball Bearing Bushings

Easy Access Spring System

Ambidextrous Fire Sector

Integrated MOSFET

Locking Bolt and Bolt release

Adjustable Rotary Hop-up

PACKAGE INCLUDES

TRIDENT MK2 PDW AEG

Magazine

Metal Flash Hider

Front Sight

Rear Sight

Short Keymod Rail Segment

User Manual

Cleaning Rod
